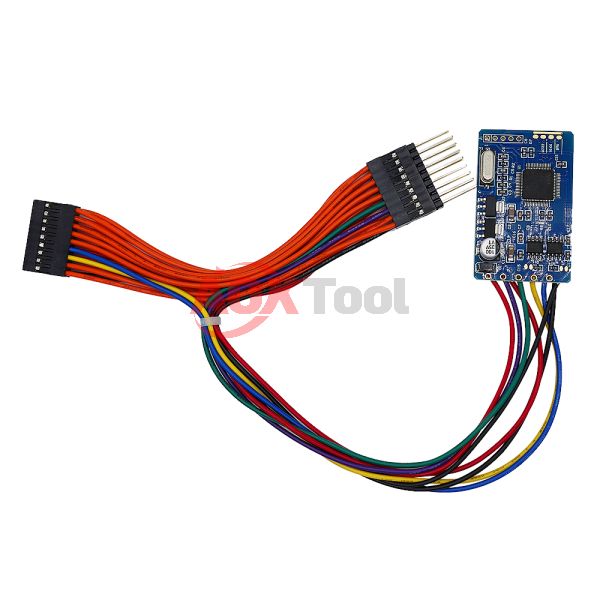

Blue Color CAN Filter 18 In 1 For BMW/MB 18In1 BMW CAN Filter BENZ can filter

MB CAN Filter 18 in 1

CAN Filter 18 in 1 Support Model:


1. Benz 18 types chasis model:
S (W222)        C (W205)        V (W447)
S (W221)        C (W204)        E (W212)
E (W207)        A (W176)        G (W46)3
ML (W166)     SL (R231)       GL (X166)
B (W246)        CLS (W218)     SLK (R172)
SLS (W197)    CLA (W117)     GLK (X204)

2. BMW Model: CAS4/FEM Fxx

BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).

This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.

NOTICE!!
New style: 222/205/217
Old style: 166/212/463
CHECK the car model correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1

YH Benz / BMW Universal filter --- Diagram for BMW

Below is wiring illustration:

Black  --------- GND                   Red --------- +12V      White  --------- +5V

Purple  -------- L1(CAN_L1)    Green --------- H1(CAN_H1)
Yellow --------- L2(CAN_L2)    Blue --------- H2(CAN_H1)
NOTICE! Please connect the 2 BMW dot together(short circuit) BEFORE connect to car!

Below is the diagram for BMW 1 series F20 instrument:

Below is the BMW 3 series F30 instrument:

Below is the diagram for BMW X5 F15 instrument:

Below is the diagram for BMW FEM:

Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H)

Package including:
1pc x MB CAN Filter 18 in 1
