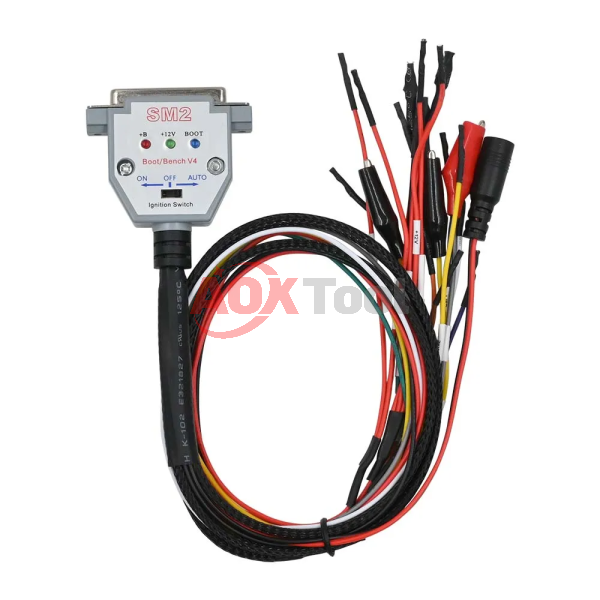

3 LED LIGHTS Switch Boot Bench Cable For SM2 PRO
3 LED LIGHTS Boot Bench Cable DB25 ECU Bench Pinout Cable for SM2 PRO J2534 VCI Read and Write ECU
There is an indication of the power of the ECU, power management and automatic signals. An external power source is required to work with the cable.
3 led lights:
Green: main power
Red:ACC power supply
Blue:Boot/cnf1 power supply
SM2 PRO+ Bench cable with switch:
1. New SM2 PRO+ bench cable with Kline. it can write the old Toyota and Lexus which car with LLINE.
2. The bench cable with switch so that power supply can be controlled manually and automatically, and it is not easy to burn
Pinout:
Red 1: +BATT
Red 2: +VCC
Yellow:KLINE
Green:CAN-L
White:CAN-H
Black 1:BOOT1
Red:CNF1
Black2:BOOT2
Black 3 cables:GND
Orange:GPT2
Purple:+VPP
Brown:GPT1
External power supply 12V
Real Photo Show
3LED light Cable With Switch:
| Weight | 0.150000 |
|---|
