(Europe, UK ship No Tax) Autel MaxiCheck MX808 All System Automotive Diagnostic Scan Tool Update Online
Product Description
|
When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality |

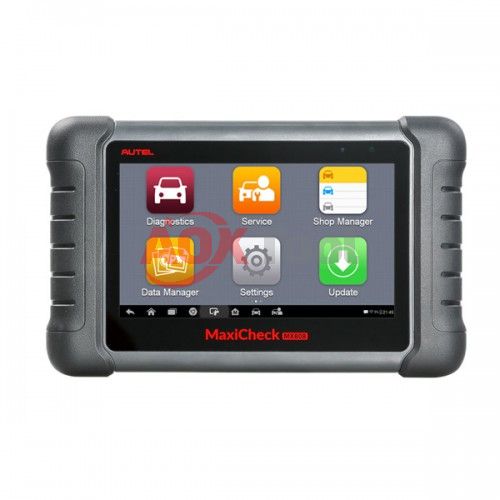

Autel MaxiCheck MX808 All System Diagnostic and Service Tablet
When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality.
The Autel MX808 has the features and functions of the older MD802 and the MaxiCheck Pro combined into one Android-based tablet that offers more service functions than the either of the older units.
The MX808 is an Android version of the Autel MD808.
The MX808 is cabled to the vehicle.
Select the Scan icon to read and erase codes and view data stream only.
Select the Service icon to perform tests and functions specific to certain service needs, i.e. electronic parking brake, battery maintanance, steering angle reset etc.
The MX808 service tablet offers wireless printing via wifi like a MaxiSYS, however, it is not a full function scanner like a MS906 or ms908.
Free update online for 1 year . 150USD/year for software subscription after 1 year
MaxiCheck MX808 Features:
Read/clear codes for all available systems
Display live data in text, graph & analog for easy data review
Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
Relearn parking brake pad after replacement
Support IMMO functions
Support forced DPF regeneration and adjusting injectors
Reset Steering Angle Sensor (SAS)
Reset service mileage and service intervals
Support TPMS sensor relearn
Support battery registration and reset
MaxiCheck MX808 Specifications:
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.4 |
| Processor | Cortex-A9 processor (1.5 GHz) |
| Memory | 32GB |
| Display | 7-inch LCD capacitive touch screen with 1024x600 resolution |
| Connectivity | Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB) |
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input/Output | Input: N/A • Output: buzzer |
| Power and Battery | 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | -10 to 60°C(14 to 140°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
| Net Weight | 788 g (2.42 lb.) |
| Supported Automotive Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo By |
Package includes:
1pc x User Manual
1pc x Quick Reference Guide
1pc x Main cable
1pc x USB External Power Adapter
1pc x Carry case
1pc x Mini USB Cable
FAQ
Question: What's the difference between Autel Maxicom MK808 and MX808 scanners?
Answer: These scan tools possess the same hardware and provide the same functions. Nevertheless, if I were to select between the two, then I would go for the Autel MK808 scan tool due to its stability and reliability in performance.
Question: Which of the two (Autel MK808 and MX808) is more portable?
Answer: If you're stuck between these two scanners as they have similar features and functions, but want a more portable gadget between the two, then the Autel MX808 scan tool is the best choice for you. It weighs 2.3 pounds, which is lighter than the Autel MK808's 5.91 pounds.
Question: What's the difference between MX808 and MD808 Pro?
Answer:
The MX808 and the MD808 Pro offer identical diagnostics, they both can read and clear codes, live data, and graphing. When comes to service functions, the MX808 scanner offers up to 18 service functions while MD808 Pro only has 5 basic services.
NOTE: Autel MX808 is totally same as MK808
Question: Autel MX808 vs Autel MD808 Pro vs Autel DS808
Answer:
-
The MX808 has similar diagnostic software to the MD808 Pro, but more services functions.
- The MX808 is a tablet, so it is easy to update (simply log onto wifi and update, MD808 you need to remove memory card and use with laptop).
- The MX808 has a shop manager to view full history of all your scans with an easy option to email or print to the client. The MD808 pro, does not have this.
The difference between the MX808 and the DS808, is that the MX808 does not have coding / special functions. So if you all you want is to read and clear fault codes with service functions, this is your unit!
