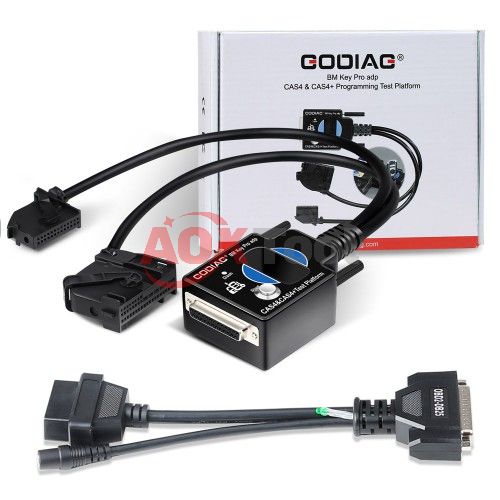

GODIAG CAS4 CAS4+ Test Platform for BMW Supports Off-Site Key Programming
SKU
EC540
$59.00
In stock
Categories: Default Category, Test Platform, Auto Locksmith Center
GODIAG CAS4 & CAS4+ OBDII Test Platform
The BMW-CAS4 adapter testing platform is used to detect whether the key that is programmed can work perfectly with the CAS4.
Features:
With this test platform, the BMW CAS4 CAS4 + key can be programmed on the workbench by OBD without opening the machine cover, thus avoiding car power loss and data loss caused by long time unlocking of the CAS4 / CAS4 + on the car.
Off-site Key Programming:
It can also test whether CAS or key is working properly, which is the preferred platform for locksmith and automotive electronics.
The wire is made of Japanese material, with built-in start button, indicator light,very user-friendly design, and most importantly, high quality and low price.
1. By working together with Godiag GT100, xhorse vvdi2 / bmw vvdi bim tool / Lonsdor k518 / Autel im608 etc, Godiag CAS4 / CAS4+ test platform can program new key when all keys lost, can add new key and replace CAS4 / CAS4+ ECU module.
2. Used to read CAS4 / CAS4+ data, replace CAS4 / CAS4+ immobilizer module and replace 2-port cas4 with 3-port IMMO box with comfortable access.
3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port immobilize system with comfort access.)
4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.
5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key.
When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.
6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.
7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.
8. GODIAG for BMW CAS4 /CAS4+ Programming Test Platform Structure Description
① DB25 female connector(used to connect the male port of GODIAG GT100 / GODIAG OBD2).
②Ignition simulated start switch.
③Immobilizer dashboard simulated indicator.
④ Key sensing area.
⑤Screw bolt.
⑥Godiag OEM dedicated CAS4 CAS4+ power adapter or CAN Communication adapter.
⑦ Godiag OEM dedicated CAS4 CAS4+ start control adapter.
9. Dimension
Package includes:
1pc x GODIAG BMW CAS4 & CAS4+ Test Platform
| Weight | 0.400000 |
|---|
