ECUtuner ECU connector GT100+ GT100 Pro OBDII Breakout Box ECU Bench Connector Adds Electronic Current Display And CANBUS Protocol

• 1 year warranty.
• ECU connection + OBDII Protocol Detector + Electronic Current Display+ 24V to 12V converter
• The cable can be extended, with an Optional dedicated adapter
• Compatible with many tools such as LAUNCH, AUTEL, FOXWELL, XHORSE, VXDIAG, CGDI.....
• Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface
• Used with BMW-CAS4 Adapter test platform to detect whether the CAS4 key programming works perfectly or not
• 24V to 12V converter
• support CANBUS Protocol Communication
• Reset instrument/immobilizer when all keys lost

ECUtuner GT100+ Function and Operation Guide
- By connecting the vehicle to diagnostic tool via OBDII, ECUtuner GT100+'s LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

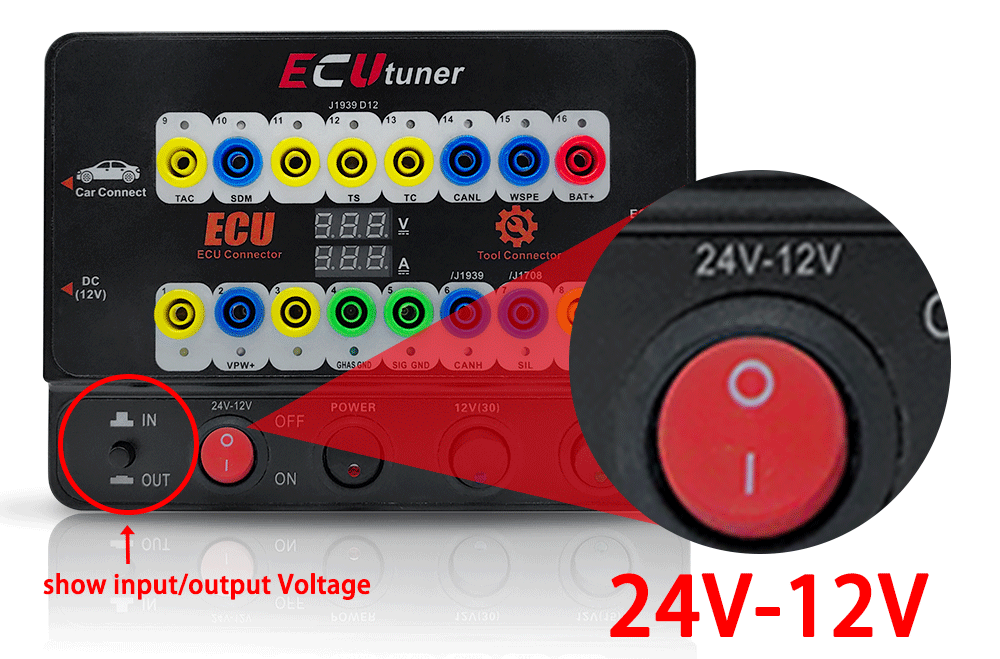

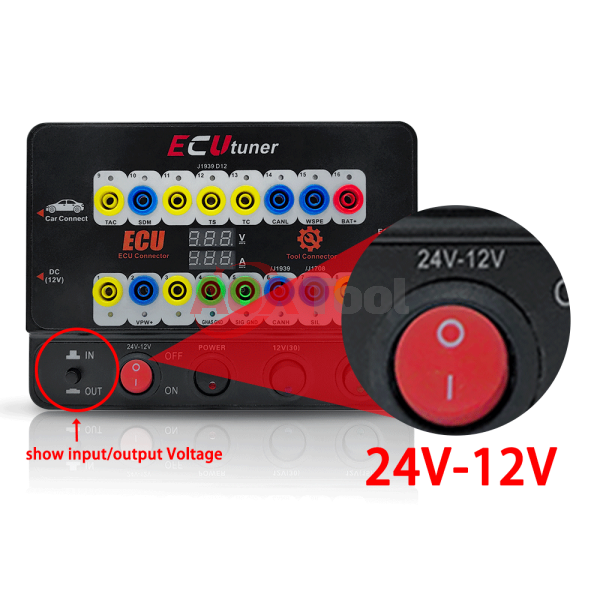

It can convert 24V to 12V (it also can show input/output Voltage) :



Hardware Connection Diagram:

ECUtuner GT100+ Function and Operation Guide

- By connecting the vehicle to diagnostic tool via OBDII, ECUtuner GT100+'s LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

Indicator Meaning:

1.) Used to check whether the diagnostic / programming / coding tool can send communication signals.


2.） ECU connection: single ECU connection


3.) GT100+ program key for VW, Porsche, Mitsubishi etc with all keys lost - activate the instrument or immobilizer module.

A. To program VW 4th generation / 5th generation Lost all keys (for example: new A6L Touareg A4 Q5 A7), please use GT100+ to short-circuit banana connector PIN 16----PIN 1 to lit up the dashboard, aft that use the key programmer tool to connect with the female adapter of GT100+ for data collection. Some vehicle dashboards won't be lit up, but data can also be collected, for example: A6L Q7.
B. To replace the engine ECU of Toyota or to use some key programmer to program Toyota when all keys lost, it needs to short-circuit PIN13-PIN4
C. To program Mitsubishi key with all keys lost or to set OBDII when all remote key lost, please short-circuit PIN1-PIN4.
D. To program Porsche Cayenne key with all keys lost or with all remote key lost, please short circuit PIN3-PIN7.


4.) Voltage and Current Value Display function

On bench connect the ECU module by using the banana connector or db25 dedicated ECU interface, and ECUtuner GT100+ will display the voltage / current value.
The user can intuitively see the current status of the ECU.
There is no current display or The actual displayed current is inconsistent with expected current, then you can immediately check whether the wiring is wrong, if the wiring is correct, he can judge that the ECU may be broken, so there is no need to perform diagnostic communication and can directly repair the ECU.

If it shows too much current, then you can also determine if the cable is wrongly connected or the ECU is broken.


5.) GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100+ can only display K- Line PWM VPW+ KWP 2000 protocol. GT100 will display CANBUS K-Line Pwm Vpw+ KWP 2000 protocol communication.

6.) Communicate with a single ECU on bench by connecting with the ECU diagnostic / programming tool.


7.) Multiple vehicle ECU module connecting.


8.) Replace the auxiliary power supply for the battery


9)


10.) GT100+ will convert the OBD1 port of special truck to the standard OBD2 diagnostic port according to the protocol.


Package includes:

1pc x GT100+ Host
1pc xOBD 2-in-1 extension cable
1pc xColored jumper cable
1pc xPower supply 12V
1pc xResistance 120 ohm
6pcs xBanana plug
24pcs xWire accessories, Dupont 2.54mm connector female pins
