J518 ECU Board for Audi A6L Q7 Steering Lock Module MC9S12DG128CFUE 1L59W MC9S12DG256CFUE OL01Y emulator
SKU
EC066
$65.00
In stock
- Used with R270 CGDI CG100 XHORSE VVDI Prog Programmer.
- Applied to repair the AUDI sixth Gen A6 Q7 Audi C6 steering column lock J518 ELV module failure replacement emulator.
Categories: Auto ECU Tools, Auto Tools, for AUDI VW , XHORSE, VVDI Key Programmer

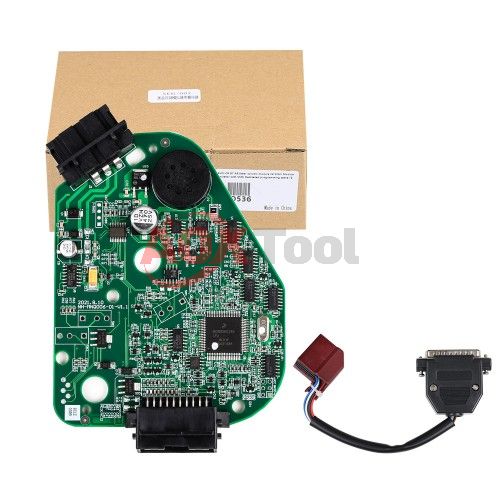

AUDI C6 Q7 A6 Steering Column Module J518 ELV Emulator with VVDI Prog Programming Cable
Introduction:
Applied to repair the AUDI sixth Gen A6 Q7 Audi C6 steering column lock J518 ELV module failure replacement emulator.
Highlights
Introduction:
Applied to repair the AUDI sixth Gen A6 Q7 Audi C6 steering column lock J518 ELV module failure replacement emulator.
Highlights
- Can be used with R270, CGDI CG100 ,CGDI CG100X, XHORSE VVDI Prog Programmer
- Universal solution, three types of MCU all can be replaced by this emulator, (replace MCU Mask: 1L59W, 3L40K, 0L01Y directly);
- Stable and durable, with No Vulnerable components such as relays, micro switches, and motors on it.
- Easy for replacing, write in the dump form the original J518 Module with the VVDI PROG dedicated line directly, No need for solder wire.
Note:
The emulator without lock or on lock function, if need the same function as the original J518 Module, please buy the J518 Replacement
The VVDI PROG dedicated programming cable connector here is only for programming the emulator board, not for the original J518 PCB board.
so if you have a car that needs to replace the J518 module with this emulator, you need to read out the data in the MCU by soldering wire or other methods, then write the data into the emulator MCU via this Dedicated cable connector.
The emulator without lock or on lock function, if need the same function as the original J518 Module, please buy the J518 Replacement
The VVDI PROG dedicated programming cable connector here is only for programming the emulator board, not for the original J518 PCB board.
so if you have a car that needs to replace the J518 module with this emulator, you need to read out the data in the MCU by soldering wire or other methods, then write the data into the emulator MCU via this Dedicated cable connector.
How to use:
1. Read out the EEPROM data from the original J518 module of your car (the emulator was already with flash data)
2. Write the EEPROM data you got in Step 1 into the emulator (if the original J518 MCU mask is 0L01Y, write the EEPROM data you got from step1 into the emulator directly;
or if the MCU mask of the original J518 is 1L59W/3L40K, you need to send EEPROM data to an expert to transfer EEPROM data when you write into the emulator directly. We don't provide the service)
Package includes:
1pc x AUDI C6 Q7 A6 J518 ELV Module Emulator with VVDI programming cable
| Weight | 0.200000 |
|---|
