EURO6 AdBlue MAN Emulator
MAN EURO6 AdBlue Emulator
- Buy 5 for $21.00 each and save 5%
- Buy 10 for $20.50 each and save 7%

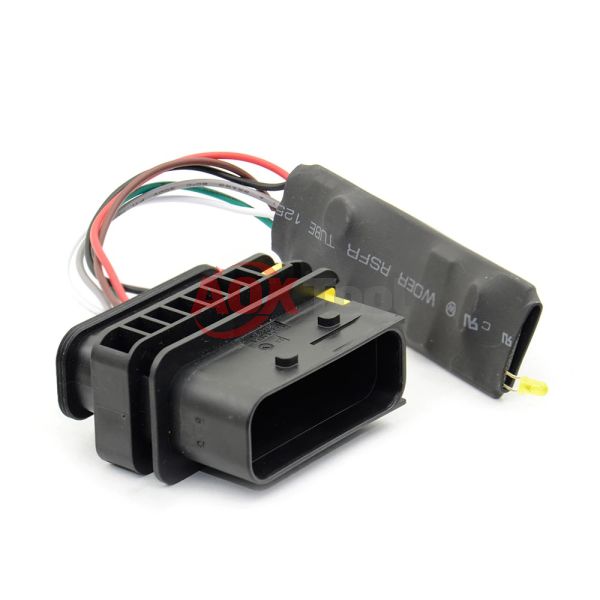

Adblueobd2 Emulator for MAN Euro6 is specially for Man Truck Euro6
EURO6 AdBlue Emulators Disable System:
AdxBlue system (Fully)
AdxBlue NOX sensor
DPF system
DPF temperature sensors
DPF regeneration
After installing Euro6 Emulator, you can remove:
DPF sensors – YES
NOx sensor – YES (only in DAF don’t remove first NOx sensor !!!)
Adblue temp. sensor (s) – YES
Adblue pump – YES
Adblue level sensor – YES
Adblue ECU – YES
EURO6 AdBlue Emulators using guide:
Emulator FOR Man Euro 6 does not need to be learned. You install emulator under the metal cover of AdBlue Pump on the right side behind the cab, and disconnect plug from AdBlue Pump and connect emulator.
Next, you need to remove the fuses:
F894(Multisensor In AdBlue tank)
F738 (+30 Signal of AdBlue pump)
F1084 (NOx sensor Upstream)
Fuse F737 is now fuse of emulator.
Fuse F1109 is the fuse of NOx sensor Downstream and A1191 mufler temperature sensor. This sensor needs to work correctly for DPF regeneration.
Finally, you need to remove Power from NOx downstream sensor. There are two ways options, one is to cut pin 1 in NOx sensor plug, the other way (better) is to remove pin 10 in X3212 plug. This plug is visible on rear of engine on the right side. This is TE plug (16 pin) with yellow key.
Package List:
1 x AdblueOBD2 Emulator for Man Euro6
| Weight | 0.150000 |
|---|
