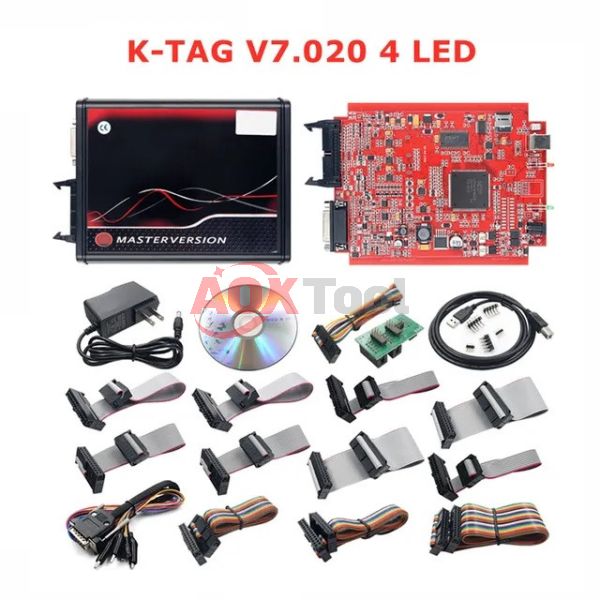

New 4LED Red PCB K-T-AG 7.020 EU Online Version SW V2.25 No Token Limited with GPT cable

EU Version Red PCB New 4LED K-TAG 7.020 Firmware Latest V2.25 No Token Limited Multi-Language K TAG 7.020 Online Version

K-TAG V7.020 Informations:

Hardware Version:V7.020  Software Version:V2.25
Master Version ECU Programming Chip Tuning Tool
No Tokens Limited,Unlimited Version
PC Supportes: Windows XP Professional/Win7/Win8
Update:By CD or Download link only
Langugaes: Italian Deutsch English French Portuguese Spanish

Very Important Note Tips:
1.Please DON'T update the KTAG online, it will damage the Unit can not use any more .(Only send back repair,buyer need pay more attention)
2.Please Close anti-virus programwhen run software

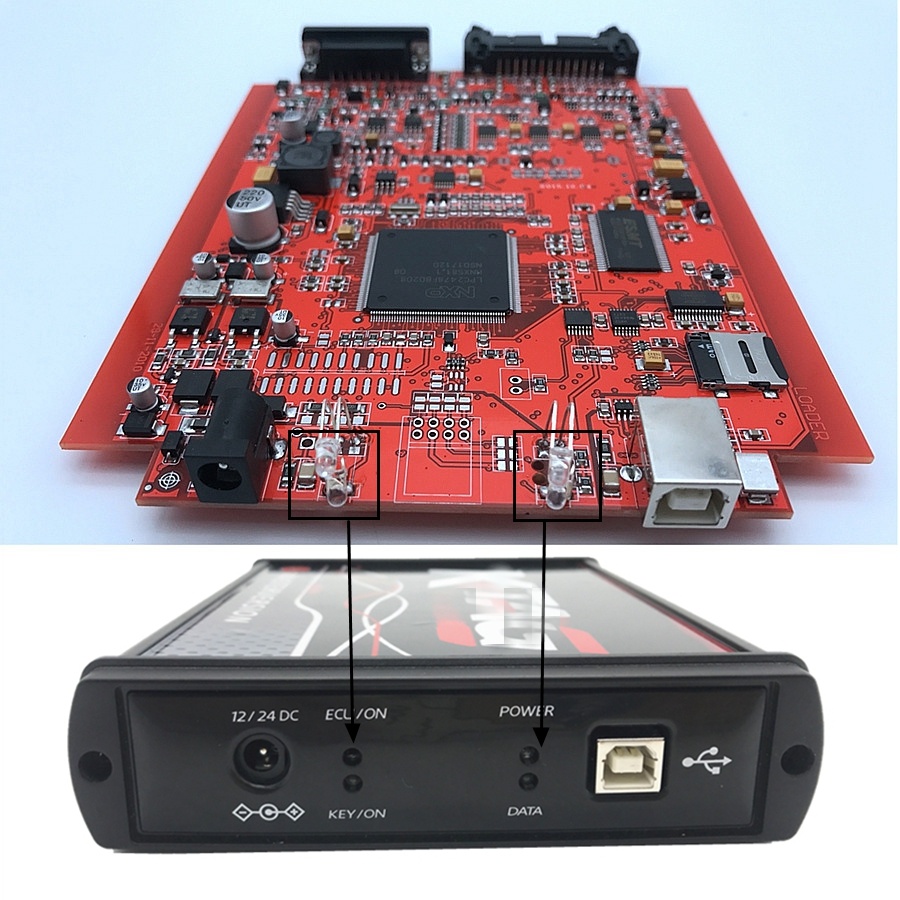

New Update 4LED Indicator on PCB:
ECU ON/KEY ON/POWER/DATA





Fllowing details of the accessories available in car list catalog per each group of protocols of communication:

BDM Motorola MPC5XX
14AS00T01S: Adapter to be soldered to the ECU
14AS00T02S: Cable with connector to be soldered to the ECU
14AS00T03S: Adapter to be soldered to the ECU
14AS00T04S: Adapter to be soldered to the ECU
14AM00T00M: Board for connection through positioning frame
14AM00T01M: Board for connection through positioning frame
14AM00T02M: Board for connection through positioning frame
14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip 14AM00TB01
14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip 14AM00TB02
14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip 14AM00TB03

J-TAG Nexus MPC5xx
14AS00T05S: Adapter to be soldered to the ECU
14AM00T05M: Board for connection through positioning frame
14AM00T06M: Board for connection through positioning frame

J-TAG RENESAS SH705xx
14AM00T07M: Write Board for connection through positioning frame
14AM00T08M: Write Board for connection through positioning frame
14AM00T09M: Write Board for connection through positioning frame
14AM00T10M: Read Board for connection through positioning frame
14AM00T11M: Read Board for connection through positioning frame

BOOTLOADER INFINEON TRICORE
14P600KT04: Board for connection through positioning frame

BOOTLOADER ST10
14AM00T03M: Board for connection through positioning frame

Available protocols for K-TAG:

BDM MOTOROLA MPC5xx
TYPE BRAND ECU ECU_TYPE K-TAG

J-TAG NEXUS MPC5xx
TYPE BRAND ECU ECU_TYPE K-TAG

BOOTLOADER FOR MITSUBISHI MH72xx/MH8xx
TYPE BRAND ECU ECU_TYPE K-TAG

BOOTLOADER ST10
TYPE BRAND ECU ECU_TYPE K-TAG
