OBDSTAR X300 DP PLUS X300 PAD2 B Configuration Immobilizer+Special Function +Mileage Correction

OBDSTAR X300 DP PLUS B Configuration Immobilizer+Special Function +Mileage Correction

This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

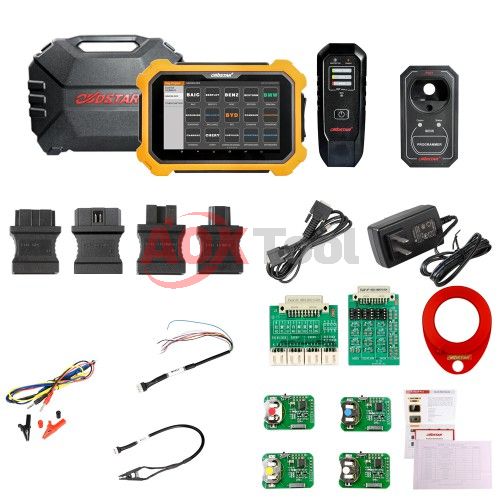

X300 PAD2 B Package:

Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002  circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)

Hardware Advantages:

1. Built-in VCI box, communication more stable

2. 8-inch touchscreen, more intuitionistic

3. Can be charged directly via OBD interface

4. Practical and high-end gift box

5. Industrial design with silicone case

6. Back bracket design:Can prop on the steering wheel or stand on the table, easier to operate

7. With 4 Toyota simulation keys (the fifth is coming soon)

8. 3 in 1, P001 programmer: combined with EEPROM adapter + RFID adapter+ Key Renew adapter

9. Add the clip of reading SOP 8PIN EEPROM

10. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Software Advantages:

I ECU Clone

1. ECU Clone, means ECU duplication.

The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.

2. Clone directly when replacing a new or a used ECU!

Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

3. Three features for ECU Clone:

A. Free of 4S online:

 break monopoly from 4S, benefiting automobile maintenance industry

B. Simplified operation procedures: realize foolproof operation

C. Non-dismantling with zero risks: read and write data without dismantling ECU

II: Switch activation function

(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)

III: Add “Help” functions

including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.

IV: Carlist: can directly get on the device

V:  Upgrade Announcement: all details are available on the device

VI: Customers can look up the features or uniquely support functions on the device

VII: Help notes: built-in help notes for each model or function

VIII: Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient


How to use OBDSTAR X300 DP Plus Induction Coil?


I. Functional Overview:
Induction Coil is used to detect the key induction coil failure of the vehicle.

II. Application Method:
Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.

TECHNICAL PARAMETER

● Operation system: Android 5.1.1

● CPU: Exynos4418  Dual Core ARM Cortex A9 1.4GHz

● Battery: 3700mA, rechargeable polymer lithium battery

● Extension memory card: 32G Micro SD (TF) card supported

● Memory capacity:1GB

● Storage capacity: 32GB

● LCD: 8.0 inch

● LCD resolution: 1280*800

● Touch screen: Capacitive touch screen

● Camera: 5 mega rear view camera

● Wi-Fi: supported

● Working temperature: -10℃  ~  55℃（14℉  ~  131℉ ）

● Storage temperature: -20℃  ~  70℃（-4℉  ~ 158℉ ）

● Weight: about 1.0 Kg

● Dimension: 254mm*174*mm*35mm

OTHER CONFIGURATIONS:

OBDstar X300 DP PLUS A Package:

Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)

OBDstar X300 DP PLUS C Package:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil reset +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag reset+TPMS+Steering angle reset+OBDII+DPF+Injector code+Suspension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)

Packing List:

1set X OBDSTAR X300 DP PLUS Programme
