Immo Emulator for VAG
SKU
V008
$7.00
In stock
VW immo emulator
Categories: Default Category, Auto ECU Tools, Auto Tools, for AUDI VW , IMMO Emulator

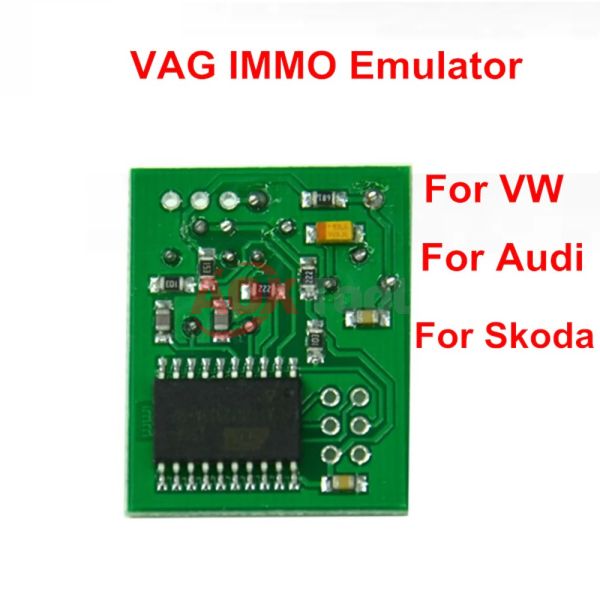

V-A-G IMMO Emulator
Connection diagram:
For cars with separated immobilizer box, short W and K lines and remove immobilizer box.
For cars with dashboard immobilizer, cut W line from dashboard
VW Golf III, Passat B4
Immobilizer box side
VW Sharan 98, Lupo 98, Polo 98, T4
Immobilizer box side
VW LT 35
Immobilizer box side
Audi 100, A6, A4, A8
VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6, TT
Audi 100, A6, A4, A8
VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6, TT
GND --- Dashboard Blue connector pin 24
K --- Dashboard Blue connector pin 25
W --- Dashboard Green connector pin 5
IGN +12V --- Dashboard Blue connector pin 1
Package including:
1pc x V-A-G IMMO Emulator
| Weight | 0.050000 |
|---|
