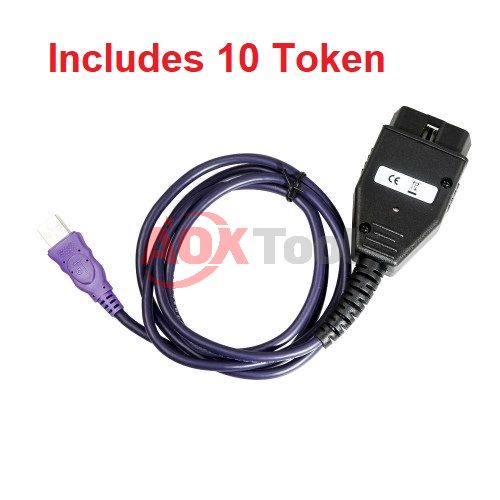

VAG OBD Helper Cable with 10 Tokens for VAG 4th IMMO BCM Data Online Calculation

VAG OBD Helper download link: www.fvdiobd.com/download/VAG-OBD-helper.zip

VAG OBD Helper for VW Audi Skoda 4th immo data calculator with One Free Token


It will need token for online calculation, device with one free token for you.

If you need more, please click Token Service for VAG OBD Helper at 5.5USD only.

Language: English, Chinese


Hook VAG OBD helper up to the VAG vehicle (VW, Audi, Skoda with 4th IMMO), you can quickly get immo data within 3-5 minutes by connecting the internet ( he time depends on the network status or the number of users), which is easy to operate, help save time and avoid the risk of disassembling the dashboard.

As known, before VAG OBD helper is released, when the VW, Audi, Skoda with 4th IMMO needs to add new keys or program new keys when all keys lost, none of VVDI2 ,AVDI, AP PRO, Lonsdor K518 can read out the immo data. Or the operator needs to disassemble the dashboard to gain the immo data.


Functions:
1. Support A4L Q5 (all the card 754C/J type)
2. can be used for VW, Audi, Skoda key making (even when all keys lost) and the 4th generation odometer correction.
   Example, 35XX key all lost 873B 24C64 type key all lost or new model 95320.
3. can add key for MQB JOHNSON dashboard (not support key all lost )
4.New PASSATT MQB key all lost.
5. Support to get BCM2 anti-theft data online for A6 A7 A8 Touareg Phideon with 5th immo.
Note: The 4th generation immo data and MQB data support most current popular VAG key programmer in the market.



How to use VAG OBD helper?
The 5th generation of data supports VVDI AP and plaintext display CS.

After "Online calculate immo data" complete, the system will save the file in the VAG OBD folder according the vehicle VIN.

The generated file can work together with the current popular VAG key programmers, you can directly generate dealer key and learn.



When to use VAG OBD helper?
1. For the VAG vehicle with MQB immo, if the immo data can't be read out, you can try to use VAG OBD helper, but can work for adding new keys (Take Johnson Controls key adding for example)

2. If A4L Q5 can't be directly read out BCM2 data, and display the data length error, VAG OBD helper can be used to calculate BCM2 data.

3.If you get all keys lost for any of 2014 A6 A7 A8 Touareg, PHIDEON with 5th immo system, you can use VAG OBD helper to online calculate BCM2 data, then working together with VVDI2, APPRO to program key.

Note: Before using VAG OBD helper, please make sure the vehicle info is not tampered and vehicle status is legal, otherwise the immo data can't be calculated.


How to install VAG OBD Helper Software:

VAG OBD Helper Software Download for Free
https://mega.nz/#!RcMgCCaa!VajQGUzre-8CrXwQaVo30sxqZ6UovnYVy4XD8spXKmY

1. Unzip VAG OBD

2. Install driver.exe, then connect the device to laptop via usb connector

3. open vagobd.exe

4. The program will read out serial number automatically
Select software language: Chinese or English
Then you can read BCM data with software

Token is required to calculated data online.



 Package includes:
1pc x VAG OBD Helper Cable
