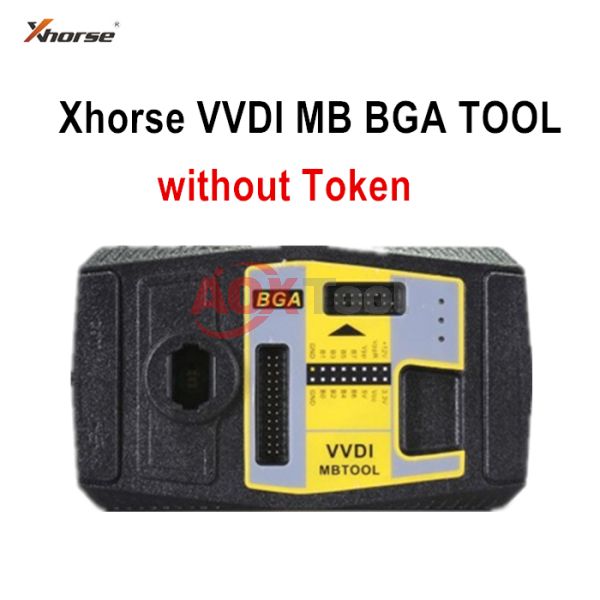

Original Xhorse VVDI Benz VVDI MB BGA TOOL Benz Key Programmer without token

--- vvdi-mb-tool-user-manual.pdf

--- vvdi-mb-tool-overview.pdf

1. it is without token, you can buy token additionally.
2. you can buy 1 year token additinally;
3.  also can buy token in piece.

Original Xhorse VVDI MB BGA Tool Benz Key Programmer Including BGA Calculator Function

Password Calculation: Read EIS under OBD mode will check car power automatically. Avoid lost data in EIS

VVDI MB TOOL Function:

1.Supports BE key, read password and prepare new key via IR.

2.NEC V051,V057 support on board get paaword

3.All NEC keys support on board write and erase

4.Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.

5.Support renew EIS and ELV

6.Support write EIS and ELV

7.Support online generate key file

8. Unlock ELV function

Note:  VVDI MB BGA tool update goes well, the following workable models are for reference only.

Supported IR/OBD Model:

W164, W164 2009+

A166, W197,W212, W218, A246

A169, W209, W211

W172, W204, A207

W203

W204, W207, W212 only by dump

W209 only by dump

W210

W215, W220

W230

W216

W221

Keys version supported:

v03, v06, v08,v05, v07, v09,v59,v61
Supports all BENZ KEYS after 2011

How  to combine Xhorse VVDI 2 and VVDI MB TOOL to your account?

1, Run Xhorse Upgrade Kit
2, Connect your Xhore device to PC via USB cable
3, Read device, select "Binding "
4, Youu will get QR code automatically
5, Login Xhorse APP, enter "Account "-"Combine device"
6, Scan the QR code to combine to your account

VVDI MB  Software Update Log:

VVDI MB TOOL latest software version V4.9.0 update

***2019-06-20
***    Require firmware V4.5.0
**************************************************  **********************
=====    BENZ V4.9.0            =====
1. This update no need update the firmware
2. Add new type for calculate password while all key lost:
a. Support W230 get key password with VVDI MB Power Adapter (All KEY LOST, 20 minutes-1 hour)
b. Support W169 type 2 get key password with VVDI MB Power Adapter (All KEY LOST, 15 minutes)
c. Support W169 type2 get key password with slow method
d.Support W164/W251 2004-2008(NEC chip)get key password withVVDIMB Power Adapter(All KEY LOST, 30 minutes)
3. Support write Mark value to NEC key from IR
4. Support write VIN to HC08/HC12 EIS(Kline)
5. Bugfix


VVDI MB software version V4.8.0 update

*** 2019-01-27
*** Require firmware V4.5.0
************************************************** **********************
===== BENZ V4.8.0 =====
1. This update no need update the firmware
2. Support W215, W220, W230 calculate password while all key lost:
a. No more need MCU’s de/soldering, very safe and quickly
b. Support W215, W220 get key password with slow method (All KEY LOST, 2-3hours)
c. Support W230 get key password with slow method (All KEY LOST, 2-3hours)
VVDI MB support all the FBS3 EIS while all key lost:
W166, W197, W212, W218, W246
W172, W204, W207
W216
W164, W251 (-2009)
W164, W251 (2009-)
W169, W209, W211
W202, W208, W210
W215, W220
W230
W203, W463, W639
W639(2009-)
W906
W221
3. Bugfix


VVDI MB TOOL software version V4.7.0 update

*** 2019-01-18
*** Require firmware V4.5.0
************************************************** **********************
===== BENZ V4.7.0 =====
1. This update no need update the firmware
2. Password calculation for ALL KEY LOST: Support W164/W251(-2009), W221 calculate password when all key lost:
a. Support W164/W251(-2009) get key password with slow method (All KEY LOST, 25minutes-1.5hour)
b. Support W221 get key password with VVDI MB Power Adapter (All KEY LOST, no need re-insert IR, 15minutes)
c. Support W221 get key password with slow method (All KEY LOST, 25minutes-1.5hour)
Until now VVDI MB support all key lost EIS type(FBS3):
W166, W197, W212, W218, W246
W172, W204, W207
W216
W164, W251 (-2009)
W164, W251 (2009-)
W169, W209, W211
W202, W208, W210
W203, W463, W639
W639(2009-)
W906
W221
3. Bugfix


VVDI MB TOOL software version V4.6.0 update

*** 2018-12-04
*** Require firmware V4.5.0
************************************************** **********************
1. Password calculation: Bugfix for W169/W209/W211(Kline) while all key lost
2. Bugfix for read W164 2009- in EIS
3. MB power adapter: When client use pirated MB power adapter to upload calculation data will get detail error
4. Bugfix


VVDI MB TOOL software version V4.5.0 update
2018-09-14 ***
*** New VVDI MB software update v4.5.0 ***
*** Attention – Require update firmware V4.5.0 ***
************************************************** **********************
1. Support write old Kline EIS via IR. You can exchange old motorola EIS without desolder mcu
2. Support activate old Kline EIS via Kline: Menu->Other function->Customer request
3. Bugfix for read old EIS Kline data
4. Password online calculation: Support get password from old Kline and CAN EIS without desolder.
a. Support W202/W208/W210(Kline) get key password with VVDI MB Power Adapter (ADD KEY and All KEY LOST, 15-30minutes)
b. Support W203/W469/W639(Kline) get key password with VVDIMB Power Adapter (ADD KEY and All KEY LOST, 15-30minutes)
c. Support W169/W209/W211(Kline) get key password with VVDIMB Power Adapter (All KEY LOST, 15minutes)
d. Support W639 2009-/W906 get key password with VVDIMB Power Adapter (All KEY LOST, 15minutes)
e. Support W202/W208/W210(Kline) get key password with slow method (All KEY LOST)
f. Support W203/W469/W639(Kline) get key password with slow method (All KEY LOST)
g. Support W169/W209/W211(Kline) get key password with slow method (All KEY LOST)
h. Support W639 2009-/W906 get key password with slow method (All KEY LOST)
5. Bugfix

VVDI MB TOOL software version V4.1.0 update
 2018-07-13
*** Require firmware V4.0.0
************************************************************************
===== BENZ V4.1.0 =====
1. This update no need update the firmware
2. Password calculation: Support calculate password for W202/W208/W210(KLine) EIS
    a. No more need MCU's de/soldering, very safe and quickly
    b. Support add key and lost all key for password calculation
    c. The procedure require about 25-30 minutes
    d. The procedure need MB Power Adapter support
    e. The procedure should work on the bench, not on car
3. Bugfix for load motorola EEPROM dump file in EIS window
4. Bugfix for activate BE key
5. Bugfix for read EIS W209
6. Bugfix


VVDI MB TOOL software version V4.0.0 update

*** Require firmware V4.0.0
************************************************* *********************
===== BENZ V4.0.0 =====
1. Bugfix for prepare BE key
2. Bugfix for autodetect som w211 EIS
3. Support personalize/activate W906/W639 ESL: EIS Tools->W906->Personalize/Activate W906/639 ESL
4. Support activate ECU, ISM
5. Bugfix for personalize ECU, Gearbox, ISM
6. Bugfix


VVDI MB TOOL latest software version V3.8.5 update

*** 2018-03-01
*** Require firmware V3.6.0
************************************************** **********************
===== BENZ V3.8.5 =====
1. We recommand all cumstomer update software to v3.8.5.
2. Bugfix for prepare BE key
3. Add Points System: Menu->Points System.
You can get bonus points by use VVDI BE key. With bonus points you can not only exchange BGA tokens, but also exchange other functions and components!
4. Bugfix

VVDI MB TOOL software version V3.8.0 update

*** 2018-02-26
*** Require firmware V3.6.0
************************************************* *********************
===== BENZ V3.8.0 =====
1. Support Spanish language
2. Support load Motorola EEPROM dump in EIS window and display key information
3. Bugfix for read KM in some W207 EIS
4. Bugfix for old motorola keys show incorrect key password
5. Support read VIN and EIS part number for Kline EIS(OBD communication require short connect PIN7 and PIN1)
6. Bugfix
This version No need to update firmware

VVDI MB TOOL software version V3.7.0 update

*** 2018-01-10
*** Require firmware V3.6.0
************************************************* *********************
===== BENZ V3.7.0 =====
1. Bugfix for some countries can’t synchronize with server
2. Bugfix for old motorola keys show incorrect key password
3. Bugfix

VVDI MB TOOL software version V3.6.0 update

************************************************* *********************
*** 2017-12-23
*** Require firmware V3.6.0
************************************************* *********************
===== BENZ V3.6.0 =====
1. Attention: All user update device to firmware v3.6.0, software v3.6.0, the lower version don't support password calculation
2. Add Upgrade Kit, use upgrade kit to update the firmware. Menu->Update Online->Upgrade Kit
3. Improve the success rate of BAG key password, erase password and enable key password
1) The server have 99% success rate for key password now (You can get key password for only 1 time calculation)
2) Reduce the key password calculate time, we only need about 20 seconds for 1 time calculation
3) The server have 99% success rate for erase password and enable key password now
4) Add some old version NEC key for password calculation
5) We will continue update our server to achieve good result for BAG key password, erase password and enable key password
4. Support activate EIS from OBDII. Menu->Other Function->Customer request->Activate EIS
5. Support activate W906(NEC) ELV from OBDII
6. Bugfix

VVDI MB TOOL latest software version V3.5.0 update

************************************************* *********************
*** 2017-11-21
*** Require firmware V3.5.0
************************************************* *********************
===== BENZ V3.5.0 =====
1. Attention: All user update device to firmware v3.5.0, software v3.5.0
2. Improve the success rate of erase password, the server will continue improve the database
3. New function: Menu->Other Function->Eeprom dump tool, support repair W210/W220 ISN eeprom dump
4. New function: Menu->Other Function->Read/Write EERPOM via OBDII, support read CPU eeprom from W202,W208,W210 EIS directly with KLine
5. New function: Menu->Other Function->Customer request, support communicate unit with CAN command(Professional user use)
6. Support detect EIS CPU chip from OBDII, after read EIS data via OBDII, you can get CPU chip is motorola or NEC
7. Support renew W639, W906(NEC) ESL via KLine
8. Bugfix for OBD communication with W639, W906 on the bench
9. Bugfix for erase problem in W204 ESL
10. Bugfix for IR read key hash on the motorola EIS
11. Support W209, W211 read password(from IR) under OBD mode
12. Add W251 EIS type
13. In Prepare Key File window, support save the key file in EIS folder automatically
14. Support Polish language
15. Bugfix

VVDI MB Tool V3.0.0 Update Feature:

*** 2017-05-02
*** Require firmware V3.0.0
************************************************** **********************
===== BENZ V3.0.0 =====
1. Attention: All user update device to firmware v3.0.0, software v3.0.0
2. New component released: VVDI MB Tool power adapter, contact dealer for payment
(1). Support fast mode for W204, W207 lost all key (Collect data only 18 minutes)
(2). Support W216, W164 2009- lost all key, no need insert IR adaptor for many times, save manpower
(3). Support read W164, W164 2009-, W209, W211 EIS via OBDII without gateway support
3. For the old motorola keys: Support read and write, require NEC ELV adaptor(Menu->Special Function->Old Motorola Key)
4. For some old W906, W639 EIS can not read data via OBDII, we support disable key
5. Bugfix for read v57 version password from key with NEC key adaptor
6. Bugfix

VVDI MB BGA Tool V2.1.7 Update Function:

1. Attention: All user update device to firmware v2.1.7, software v2.1.7
2. User manual v1.7 released, overview v1.7 released
3. BGA password calculation: bugfix for lost all key W216, W164 2009-
4. Exchange W204 ESL withou renew EIS. In ESL Tools, write EIS with password(Select Auto clear TP and personalized)
5. Activate key: Change key status from unuse to used
6. Bugfix for read v57 version password from key with NEC key adaptor
7. Bugfix

VVDI MB BGA V2.1.6 Update Feature:
1. Attention: All user update device to firmware v2.1.6, software v2.1.6
2. User manual v1.7 released, overview v1.7 released
3. BGA password calculation: Add support for lost all key W216, W164 2009-
4. Exchange W204 ESL without renew EIS. In ESL Tools, write EIS with password(Select Auto clear TP and personalized)
5. Activate key: Change key status from unuse to used
6. Bugfix for read v57 version password from key with NEC key adaptor
7. Bugfix

VVDI MB BGA Tool V2.1.5 Update Feature:

*** Require firmware V2.1.5
1. Attention: All user update device to firmware v2.1.5, software v2.1.5
2. Support read old type w209, w211 password via IR directly
3. Support activate blnak BGA key(0CF4)
4. Bugfix for data acquisition in some old key version
5. Language bugfix

VVDI Benz MB BGA V2.1.4 Update Feature:

1. Attention: All user update device to firmware v2.1.4, software v2.1.4
2. Support get password from w204, w207 EIS when lost all keys

VVDI MB Tool V2.1.2 software:

1. Attention: All user update device to firmware v2.1.2, software v2.1.2
2. User manual v1.6 released, overview v1.6 released
3. Support Repair KM: Menu->Special Function->KM Repair, support w204, w207, w212, w211, w166, w246, w231, w205
4. Support read/write gateway: Menu->Special Function->Read/Write CGW(ZGW)
5. Support Read/Activate blank BGA key(0CF4): Read Write Key->Read blank BGA(0CF4) EIS data
6. Support read current HASH in key(Repair key): Read Write Key->Key current HASH (Repair key)
7. Support unlock key track: EIS Tools->IR->Enable Key
8. Support another type (Continental)ISM read/write/erase
9. Bugfix


VVDI Benz BGA tool Feedback:

1. I tested password from 212 new model super,good tool, need to pay 2 tokens ,it will take 10 min all ok .


2. Do you have see video of this tool? They say can do all key lost on w212. No tool can do it even Mehaco or nec pro51.

w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months.


3. Q:i tes read data with obd2 210 k line working and 204 car read with obd 2

but 211 not read with obd2 cable connect

16 12v

4+5 GND

14 CAN_L

6 CAN_H

pin 1 : ESL 1

pin 2 : GND

pin 3 : +12V (30)

pin 5 : CAN L (White)

pin 6 : CAN H (Green)

pin 7 : CAN L

pin 8 : CAN H

CAN ANY ONE TEST

A:Read eis via obd for W164, W169, W211, W209, require gateway connected

4.  I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL

5. There is the new tool form VVDI called VVDI MBTOOL and until now have worked very well with me.
If you want a good device for a good price i think VVDI MBTOOL its your best choice.

6. Now get password from W204 EZS/EIS all keys lost type process in 2nd attempt using VVDI BGA V2.1.4 new software.

If all key lost you need 2 tokens. After 1 minute get back the password….

Try now calculate key dumps, write first dump to BE key, use in EZS/EIS…learned quickly…
Try to use now Xhorse W204 ELV-emulator…success assigned…new key turn, EMU sound lock/unlock rightly…

Every W212, where assembled manual transmission or 5G-automatic have W204 EZS/EIS with W204 ELV metal unit

I done already W212 ELV emulator with  for W204. All went quick with no problems whatsoever.

FAQ VVDI Benz MB BGA Tool & Tokens:

About token usage:

Q: How about token, they will be deducted for each calculation, or only for special function as for BGA calculation?
I mean simply operation as calculating keys for older type of EIS are free or need tokens for this too?For EVL repair, ECU renews takes tokens too?
A: Tokens will be deducted for each calculation.

Q: How to get FREE tokens for password calculation?
A: Free tokens only for those with Condor key cutting machines (condor xc 007, xc-mini, xc-200)
Note: For users with Condor machine, everyday you can get one free token for calculating password.

Q: Where to see vvdi mb tokens ready for use?
A: After successfully add tokens, start your vvdi mb software, and click on “Password Calculation”. The token number will be displayed.

Now,it shows 0 times for calculation.If successfully add,it will display the tokens you pay.

Q: Any more info of password calculation and mercedes key programming?
A: Password calculation support working key mode and lost all key mode.

WORKING KEY MODE NEED PAY 1 TIME FOR SUCCESS CALCULATION. LOST ALL KEY NEED PAY 2 TIMES
FOR SUCCESS CALCULATION

Password calculation – working key: can get key password through EIS and
working key (online)
CAN protocol EIS all support password calculation
Support BGA keys and other NEC keys
Support calculate password for NEC v51, v57 keys. No soldering, safe method.
Data acquisition time depends on the key version. It needs about 3.5 – 13 minutes
BGA version need about 5 minutes, some versions only need 3.5 minutes
Calculate time in server: 30 seconds – 1 minute
Password calculation – lost all key: support W166, W212, W246, W212(old with ELV)
EIS for password calculation while lost all working key
Lost all key data acquisition time depends on EIS type, It needs about 3.5-8 minutes
Lost all key calculate time in server: 30 seconds – 1 minute

About EIS reading methods:

Q: This BGA tool is included device programmer, or is necessary to cooperatre with other tool ( xprog, upa, or i as saw a xhorse device programmer) and import a eeprom file to calculate and program keys? ( so by the EIS where can´t be read info through K-line or IR way.
A: CAN line EIS support online calculation directly,if K line with motorola EIS type support load eeprom to prepare key file(read by other programmer); online calculation cannot support K line EIS,exactly support list refer to User Manual please

About vvdi mb tool reading data:

Q: by reading trough K-line or IR way Xhorse tool read and write full contents of EIS eeprom , or only part with Hashcodes, ...). Can be the dump save as bin for future use?

A: Vvdi mb can read and write key via IR mode, but not full contents of EIS eeprom

Read Write Key support read key basic information, write key file, renew/write NEC key(Support Keyless Go). BE keys can read password directly via IR, renew BE key, write new key file to BE key
NEC adaptor support v51, v57 key password

About IR mode:

- Identification key：Support read key basic information: SSID, counter, remain times, use times, key number, status, version, mark values etc

- BE key: Key version is BE,support read password and key eeprom stored in BE key,write new key file to make a working key, renew used BE key to new one etc

If working key is BE version, you can read password from key directly, no need read password from EIS

- NEC&BGA Keys: Write key file to new original keys or erased keys via IR

- Write mark values: Only BE key support, you can write information for yourself

- Copy key password: You can copy the password to clipboard after success read key password

- Repair key via IR: When identification key, you can only get SSID, Status, Version, then you can repair this key via IR

About keys saving:

Q: by calculating keys , this calculate all possible keys and can be saved or only one?

A: 8 position keys with different format

About calculated dump:

Q: can i import to xhorse calculated dump for the keys (for example from SKC calc) to program new key or toolsupport only self calculating.

A: if you get password successfully,even other device get still support prepare key file on VVDI MB TOOL

About VVDI MB tool repairing nec:

Q: Repair NEC in ESL - have you any experience how it work?
This repair take a tokens too?
A: if you get password successfully,even other device get still support prepare key file on VVDI MB TOOL
only online calculation for getting key password need tokens,other functions all free.such as get erase password, renew ECU/ISM/Gearbox.
