(Ship from US/EU/RU) 3% Off XHORSE VVDI KEY TOOL PLUS Key Programmer Advanced Version Supports Benz BMW VW AUDI All in 1 DHL Free Shipping

---the price will be 5% off automatically in your shopping cart.

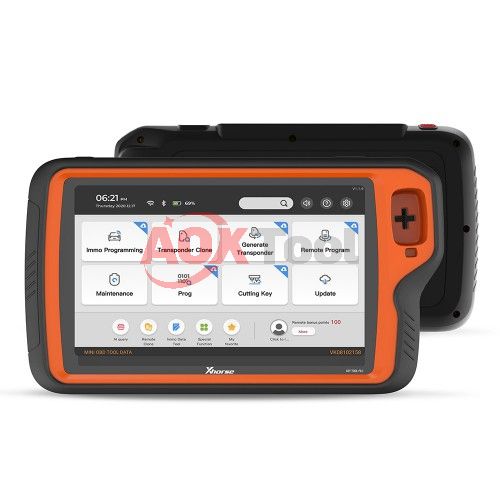

XHORSE KEY TOOL PLUS Pad Key Programmer Supports BENZ BMW VW AUDI All in 1

VVDI Key Tool Plus Highlight:

• Global advanced version and full configuration
• Combines functions of VVDI2, VVDI MB, Key Tool Max, VVDI BIM, VVDI PROG and VAG OBD Helper with the ability to expand the capabilities as needed.   It's available to control the key cutting machines developed by Xhorse.
• Multi-Language: Chinese, English, Thai, French, Polish, Hindi (more language will be developed in the feature)
• VVDI Key Tool Plus bind with Xhorse key cutting machine to get free BGA token everyday.  ID48 and read MB Key password online will need token, but both can read xhorse bonus points.
• Free Update Online
• 1 Year warranty

XHORSE KEY TOOL PLUS Features:

1. Support transponder copying/clone
2. Identify almost transponder in market
3. Support re-programming almost transponder in market
4. New remote re-generating / new remote making
5. Multi-language:  Chinese, English, Thai, French, Polish, Hindi

The most advanced application processor of KEY TOOL PLUS, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.

New Comming Soon Update: Support VVDI VW 5C (MQB478)


POWERFUL BASIC FUNCTIONS

Generate Remotes and Smart keys

Renew (unlock) remotes

Remotes clone

Program and Immo Transponder

IC/ID Clone

Frequency Detection

Transponder detection, clone, and generating

Support for Jaguar, Land Rover, Porsche, Volvo, Mitsubishi, and others

Service light reset

Key cutting machine control

Common vehicle IMMO programming


BUILT-IN OTHER FUNCTIONS:

DOIP

CAN-FD

CAN and K protocol switch pin

Chip pin detection

Toyota Smart key programming without simulator

Long-distance IMMO collection

Built-in OBD matrix switch

Radiofrequency simulator

Smart key simulator

Integrated key identification coil

BENZ infrared reading head


WE PROVIDE AN ALL-IN-ONE AUTOMOTIVE SOLUTION



WE MAKE IT FIT FOR MORE LUXURY CAR BRANDS Support IMMO programming on luxury car brands - Benz, BMW, Audi, VW and common car brands - Toyota, Honda, Mazda, Ford, etc.

IMMO Programming for European vehicles:
VW & Audi:
3rd / 4th / 5th generation
MQB
MED17/EDC17


BMW:
CAS3/CAS3+
CAS4/CAS4+
FEM/BDC
ECU ISN Reading Function


BENZ:
FBS3 standard keys and FBS3 keyless-go keys
Smart keys, all keys lost, add keys, enable & disable keys
EIS/EZS, ELV, ECU, gearbox, and ISM replacement



KEY TOOL PLUS supports over 20,000 car models worldwide. We can select the car brands and car models on the immo programming interface. On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.



WE INCORPORATE PROG FUNCTION
KEY TOOL PLUS  supports reading and writing common modules and chips. It covers "EEPROM and FLASH", "IMMO", "Instrument", "Airbag", and "ECU", etc.



Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. The function is only effective on the advanced edition.)

WHAT WE CAN COMPLETE BY PROG FUNCTION ON KEY TOOL PLUS?

Support EEPROM reading and writing: support reading & writing most types of transponders in the market.
Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
Support Land Rover RFA module reading and immo programming.
Support Porsche BCM programming.
Support read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
Support Instrument programming on HONDA, KIA, and HYUNDAI.


WE IMPROVE THE IMMO DATA TOOL (FILE MAKE KEY)

Key programming and certain settings can't be finished via OBD port on some car models due to their immobilizer protection system. Through a professional programming method - FILE MAKE KEY, the problem can be easily solved.

[ File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data, and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the immo box when doing the programming process on some car models.) ]

KEY TOOL PLUS supports File Make Key function for common car models and motorcycles. we can easily find the car models we need by brand area, brand name, and A-Z word search.



WE "LIBERATE" YOUR APPLICATION PROGRAM INTERFACE

[CONTROL KEY CUTTING MACHINES DEVELOPED BY XHORSE]
KEY TOOL PLUS is available to control the key cutting machines(CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.


PAREMETERS

CPU: 8-core 2GHz
RAM+ROM: 4G+128G
Operation System: Android 9.0
Screen Size: 10.1" HD Anti-glare; Anti-fingerprint
Rear HD Camera: 13.0MP
Battery Capacity: 10000mAh
Charging: 30W Super Fast Charge
Bluetooth: 5.0 Bluetooth
WIFI: 2.4G/5G

Xhorse Key Tool Plus Overview:




Key Tool Plus Ports Introduction:

Light sensor: detect the brightness in the surrounding environment

Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)

• Support reading, writing, and cloning common immo transponders
•  Support reading common ID transponders
•  Support reading common IC transponders
•  Support frequency detection of common vehicle remotes

Immo transponder placement hole for vehicle immo transponders

USB charging port:  support standard fast charge adapter and standard Type-C port DC-5V input.
PS2 port for remote programming
DB15 port: support standard & optional programming adapters with DB15 port
DB25 port for OBD matching
Benz Infrared (IR) port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader

VVDI Key Tool Plus FAQs:

Q1: What are the features of VVDI Key Tool Plus Tablet?
A1: KEY TOOL PLUS Tablet is a professional locksmith tool that integrates the main functions of remote control and chip, anti-theft matching, programming, accessory replacement, maintenance reset, etc., and also reserves future expansion capabilities. One device can solve all the needs of daily work.

Q2. What policy does the KEY TOOL PLUS tablet have for regular customers.
A2: We have always given priority to old customers, and will give them more preferential treatment. Old customers can book at very low prices as long as they have bonus points.

Q3. How about the original VVDI series device after the KEY TOOL PLUS tablet comes out?
A3: The KEY TOOL PLUS Tablet is used to fill the gaps in the KEY TOOL series of product lines, and provides a more convenient tool for the daily work of locksmiths. We will not stop the production and sales of VVDI2, VVDI MB, VVDI PROG and other products, old customers can continue to use, we will continue to provide development and upgrade, will not stop service. Please do not worry.

Q4. I heard that old customers can migrate functions?
A4: Yes, because the KEY TOOL PLUS tablet is divided into the basic version and the advanced version, the basic version does not include the anti-theft matching and programming functions of Volkswagen, BMW, Mercedes-Benz. After the migration, the original device function authorization is cancelled, and the relevant authorization is opened on the KEY TOOL PLUS tablet. In order to reduce the impact on the use of old customers, we decided to continue to provide half-year free licenses for the relocated old equipment.

Q5. Your KEY TOOL PLUS tablet is an update version of KEYTOOL MAX, isn't it?
A5: No, not just update version of VVDI Key Tool Max. KEY TOOL PLUS Tablet uses higher configuration hardware and supports more protocols and interfaces. Of course, KEY TOOL Super Tablet also covers all the functions of MAX.

Q6. How do you plan for VVDI2, VVDI MB, and VVDI BMW tools in the future?
A6: In the future, VVDI series products will continue to be upgraded, and will develop more towards specialized functions such as programming, coding codes, parameter refreshing, etc., and they are professional equipment for locksmiths. KEY TOOL PLUS Tablet focuses on solving daily work needs, so each has its own advantages.

Q7. How about the KEY TOOL PLUS tablet configuration?
A7: We have fully listened to the suggestions of the locksmith masters. Considering the sustainability of the product, we have adopted high-performance hardware configuration on the VVDI KEY TOOL tablet, such as 8-core CPU, 4G memory, 128G storage, 10.4 inch HD The screen and other configurations higher than the industry level, while integrating support for new technologies such as DOIP and CAN-FD, reserve sufficient space for future function expansion.

Q8. Will VVDI KEY TOOL PLUS Tablet cost money in the future?
A8: We have always insisted on free upgrades, and the upgrade of the main functions of the tablet will also be free. However, for functions with greater breakthroughs, such as the support of Mercedes-Benz FBS4, we will charge a certain upgrade fee because of the large investment in research and development.

Q9. How about VVDI KEY TOOL PLUS IMMO Support List?
A9: The VVDI MINI Key Tool Plus Tablet supports more than 90% of the common models on the market. At the same time, we will continue to improve and add new models, and these are free upgrades.

Package List:
