Xhorse VVDI2 ID48 Data Collector (No Need Register Condor)

Xhorse VVDI2 48 Data Collector (No Need Register Condor)

Xhorse VVDI2 48 Data Collector is working together with VVDI can copy 48 transponder of 4th Immobilizer system. The supported type incl. NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.


Supported type:
48 chip copy function applies to 4th Immobilizer system, the supported type incl. NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.

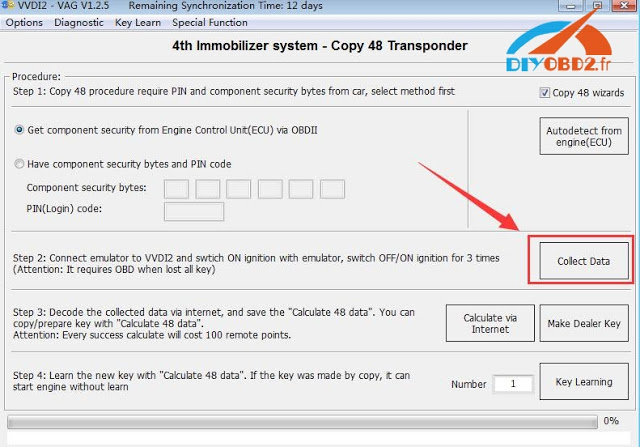

XHORSE VVDI2 48 Chip Copy Display:

Features of the 48 Copy Function:
1) It should work together with VVDI.

2) It can copy 48 transponder of 4th Immobilizer system. The supported type includes NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B tec.

3) Copy 48 fucntion can work on the car that support reading PIN and CS via OBDII. Of course, known CS and PIN is supported. Support make new key, support add keyless GO keys, especially support lost all key ;

4) For Passat B6/CC, it only support clone 48 transponder(must have working key), it doesn't support 46 transponder, doesn't support keyless Go, doesn't support all key lost;

5) Each success calculate will cost 100 remote points ;

6) it can copy 48 chip, add 48 chip, support 48 all key lost and support smart key.

7） for Magotan/CC, it can only copy 48 chip with original key, not support 46 chip, smart key and all key lost.

To Copy 48 Chip, you need:
- Authorized " copy 48 function"
- VVDI2 has 4th Immobilizer system function

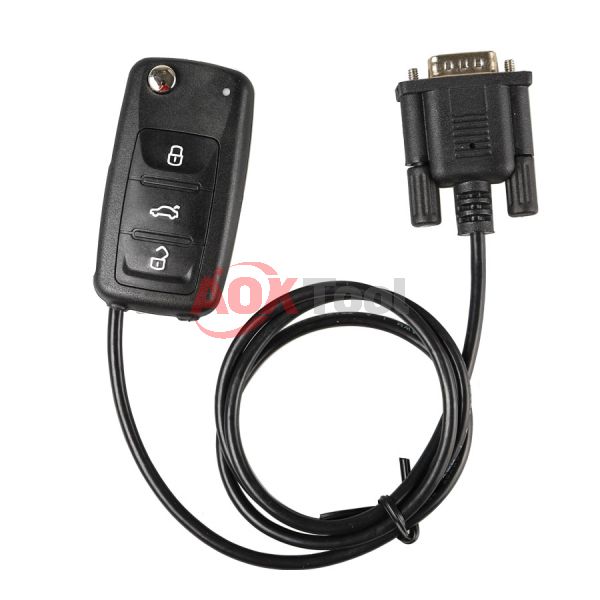

- VVDI2 Chip copy adapter
- New 48 Chip
- 100 points in your VVDI2 for one-time 48 Chip copy

How to activate "48 copy function":
Open VVDI2 key programmer software - Menu - Memeber Points System, activated 48 copy function by yourself.

In the process of coping 48 chip, it required PIN code and component security bytes from car, you can select any of the following method:
1) VVDI2 can read out the PIN code from engine control unit via OBD and CS.
2) you have component security bytes and PIN code.
