Xhorse XDMQBAGL MQB48 Adapter for VVDI MLB Tool Collects NEC35XX IMMO Data No Tokens Required

VVDI MLB Tool adds MQB48 NEC35XX immo data collection function.

XHORSE XDMQBAGL MQB Adapter, with MLB equipment, does not need to disassemble the instrument but only the key, and only needs to solder two wires. With low risk, simple operation, it can add keys for most MQB48 keys.

Features:

No need to disassemble the instrument.

Easier to read key data and add keys.

No points/tokens required to use MQB48. (NOTE: KYDZ tool does requires tokens, $15 each)

Works on PC or Key Tool Plus (coming soon)

Function:

Similar to MLB, open the key, read data and program additional key.

This new tool is for MQB48 Megamos AES.

Read immo data (CS code) from mqb working key on the MQB48 platform so can add keys without take the cluster to read on bench.

Data Collection Time:
Good power supply: ~15 minutes for data collection, ~1 minute for immobilizer data calculation.
Average power supply: ~30–60 minutes for data collection, ~1 minute for calculation.

Note: It will also connect with key tool plus to collect immo data. But tablets with a single Type-C port have poor power stability, leading to longer collection times and lower success rates. Strongly recommend using a PC.
PC calculation takes 4 minutes while key tool plus takes more than 10 minutes. key tool plus menu path will be: IMMO Programming—VW—Select by type—MQB instrument immo system—NEC35xx (Continental/VDO)—
For MQB48 and 5C chip only. Cannot collect immo data MQB49/5C from key.

Check Technical support column to see how to use VVDI MLB Tool with MQB48 adapter.


How to Connect VVDI MLB Tool with MQB48 Adapter?

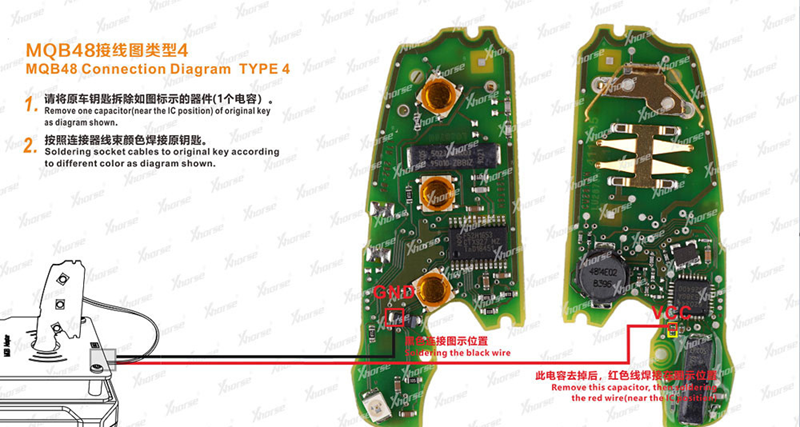

VVDI MLB Tool MQB48 Wiring Diagram：

Remove one capacitor (near the IC position) on the original key, as shown in the diagram.
Solder the socket cables to the original key according to the specified colors in the wiring diagram.

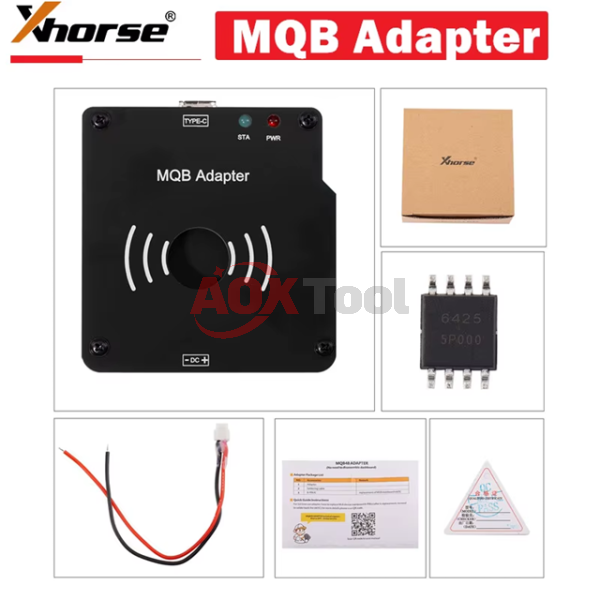

Package includes:
1pc x XHORSE XDMQBAGL MQB Adapter
