Yanhua Mini ACDP BMW DME Adapter X5 N47 DME Interface Board Bench Mode

YANHUA Mini ACDP Bench Mode BMW DME ADAPTER X5 Interface Board

Module Function:

1: Support BMW E chassis N47 ( EDC17C06 ) diesel DME ISN read / write and clone.

Module Feature:

1：No need to open DME shell, no need to drill hole on DME, no need to plug wire.

2：The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.

Connection diagram:

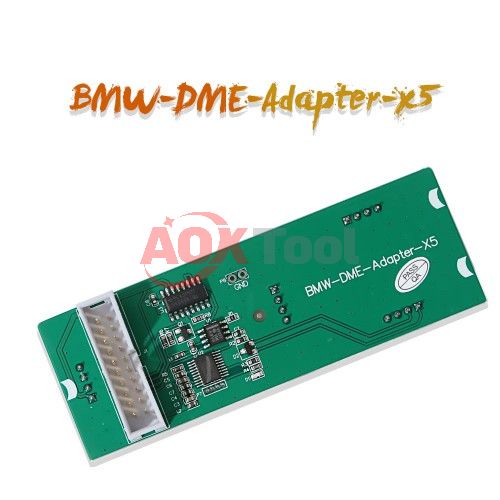

BMW DME ADAPTER X5


Screen of ISN read / write X5 N47 DME:








Screen of clone N47 DME:





Package includes:

1pc x YANHUA ACDP BMW DME X5 interface board
